39SW高速直流无刷电机的技术参数General Specification
项目Item | 规格Specifications |
电阻精度Resistance Accuracy | ± 10% |
温升Temperature Rise | 80°C Max. (rated current, 2 phase on) |
环境温度Ambient Temperature | - 10°C ~ +50°C |
绝缘等级Insulation Class | B |
介电强度Dielectric Strength | 500 VAC for one minute |
39SW高速直流无刷电机的技术规格 Technique Specifications
型号 Model No. | 相数 No. of Phase | 电压 Rated Voltage V | 转速波动 Speed fluctuation rpm | 空载电流 Idle current A | 电阻 Line to line Resistance W | 重量Weight Kg | 机身长度Length mm |
39SW0601A | 3 | 12 | 5500±100 | ≤0.5 | 2.2 | 0.13 | 36.6 |
39SW高速直流无刷电机的机械尺寸Dimensions(Unit=mm)

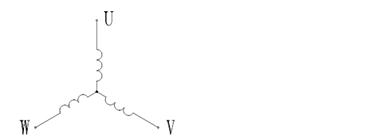

39SW高速直流无刷电机的绕线图Wiring Diagram
